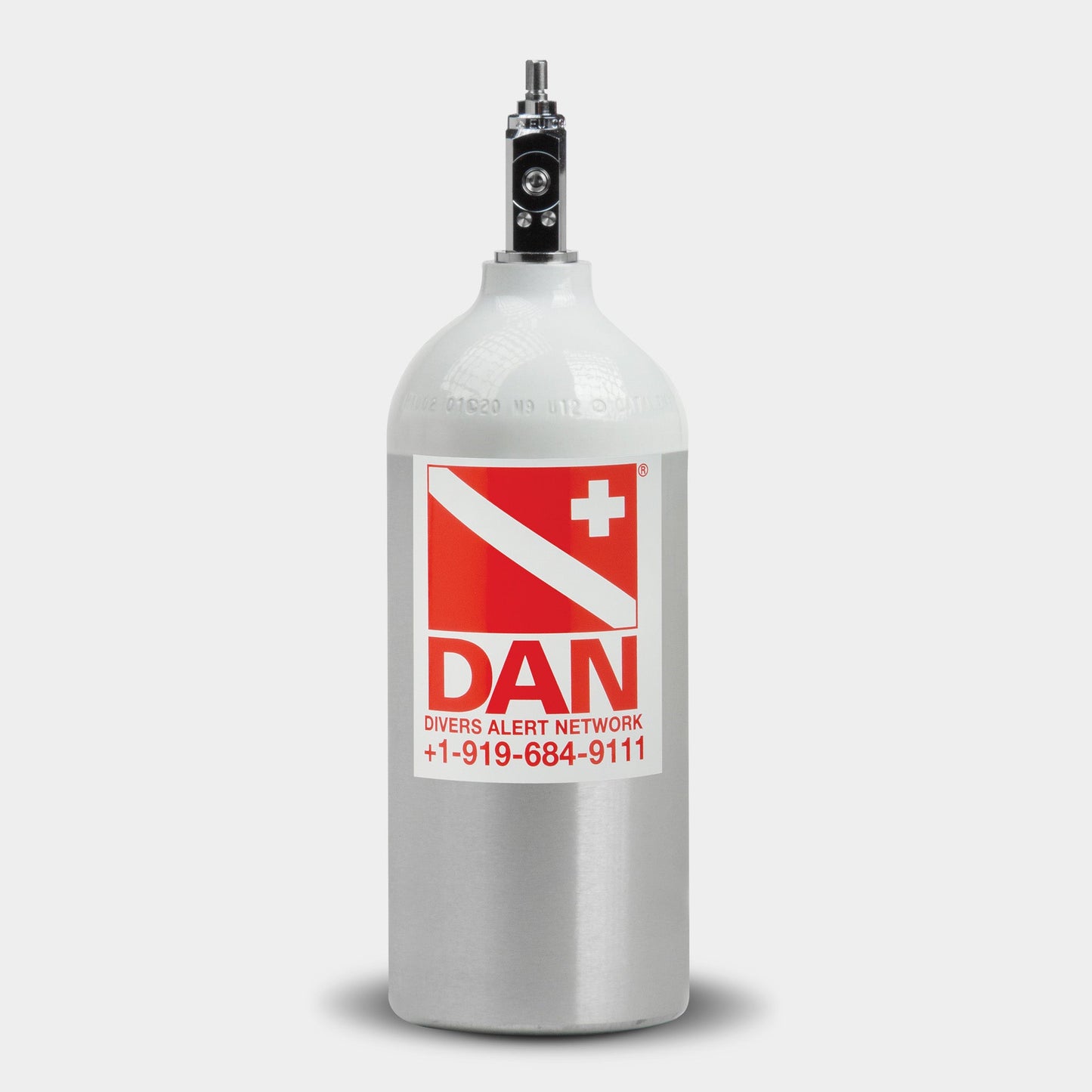

M9 Oxygen Cylinder - White shoulder

This cylinder is used with DAN’s Rescue Pak Extended Care, Dual Extended Care and Soft-Sided Extended Care oxygen units.

Note: Not for use in the USA

M9 cylinder

Specifications

• ± 23 minutes oxygen delivery time based on 10 liters per minute constant flow
• ± 15 minutes oxygen delivery time based on 15 liters per minute constant flow
• Fitted with a standard PIN Index valve to CGA-870 (ISO 407)
• Aluminum cylinder with green or white shoulder
• Specification: DOT 3AL & TC 3ALM
• Aluminum alloy 6061-T6
• Clean for oxygen as supplied by manufacturer Overall length including valve: 13.5” (356 mm)
• Nominal diameter: 4.38” (111.3 mm)
• Water capacity: 1.7 liters
• Rated working pressure: 2015 psi (139 bar)
• Maximum gas volume when full: 9 cf (255 liters)
• Weight empty: 3.8 lbs (1.7kg)
