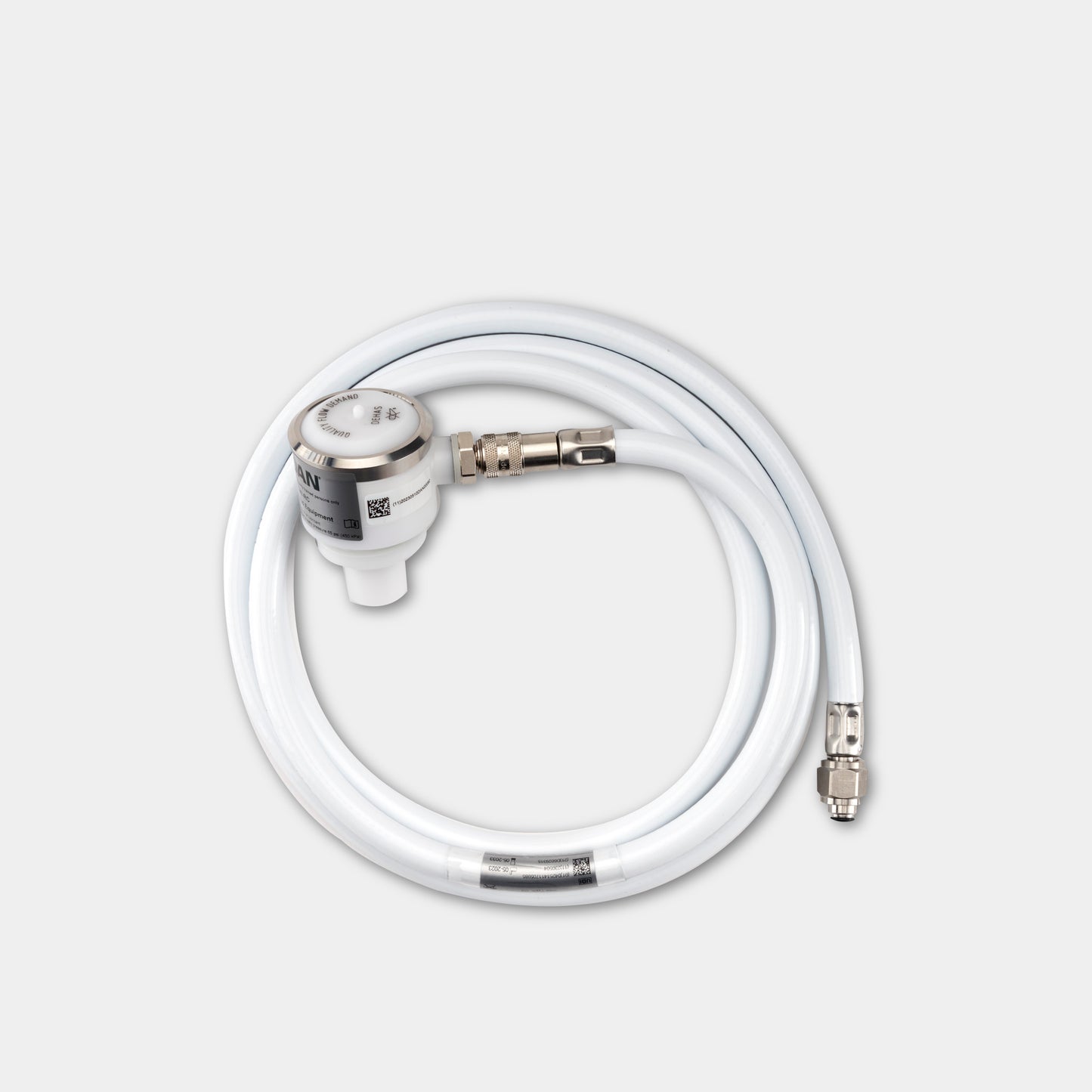

Demand Valve w/QC white 6ft hose
Demand Valve w/QC white 6ft hose
SKU:611-3006
Product Details
PRODUCT DETAILS:
Hard-wearing thermoplastic body with all internal parts made of stainless steel.
Robust to minimized damage from handling
Corrosion free
Superior performance with reduced breathing resistance
No maintenance requirements
Demand valve hose connection is a quick connect end fitting, making it more flexible and quicker to assemble and disassemble.
SPECIFICATIONS:
Required operating pressure: 40 – 80 psi (2.7 – 5.5 bar)
Maximum flow capacity 165 LPM (peak 200 LPM) at 65 psi (4.5 bar)
Cracking (trigger) pressure: < 1 cm H2O (< 0.1 kPa)
Exhalation resistance: < 3 cm H2O (< 0.3 kPa)
Limiting pressure: < 60 cm H2O (< 6 kPa) through secondary safety valve
Inlet filter: 25 micron
New oxygen hoses (white)
Used to connect the Demand Valve (D-DV-W-RC) or the MTV (D-MTV) to the multifunction regulator.
PRODUCT DETAILS:
White 6 ft oxygen hose with stainless steel end fittings:
DISS connector on one end and quick connector on the other end.
Note: This hose is not interchangeable with previous
demand valves or MTV-100 valves requiring DISS connectors on both ends.
