Dual Rescue Pk Extended Care w/MTV-100

GREEN CYLINDER NOT FOR USE IN CANADA

Oxygen, water and food are necessary for life, and of the three, the lack of oxygen will lead to death most rapidly. Dive injuries such as lung barotrauma, decompression illness and near drowning decrease a diver’s ability to metabolize oxygen.

Providing emergency oxygen at concentrations nearing 100 percent can reduce damage to oxygen starved tissues, making a dramatic difference in the injured divers’ conditions, and improving their response to further medical treatment.

When diving, help is not always close by. If you are diving in a remote location, be prepared to respond to an emergency with the DAN Dual Rescue Pak Extended Care Oxygen Unit. This kit could improve the condition of a friend or family member suffering from decompression illness or other diving related injuries.

An MTV (Manually Triggered Ventilator) allows ventilations to be performed with oxygen in concentrations nearing 100 percent

Proper training is required to administer oxygen, to find an instructor near you, visit DAN Training

PRODUCT DETAILS:

When filled, this unit provides approximately:

·         116 minutes of delivery time @ 10 liters per minute, and

·         78 minutes of delivery time @ 15 liters per minute.

2 M22 Cylinders: total capacity 1,246 liters/44 cu. ft when full.

Brass multi-function regulator with 2 DISS threaded outlets, 1 barbed constant flow outlet, and 1 pressure gauge in psi.

Thermoplastic manually triggered ventilator (MTV), maintenance and corrosion free, with quick connect fitting.

Green 6 ft oxygen hose with stainless steel end fittings: DISS connector on one end and quick connector on the other end.

Note: This hose is not interchangeable with versions requiring DISS connectors on both ends

Unit dimensions: 23.25 x 20.75 x 9 inches

Weight: 38 pounds

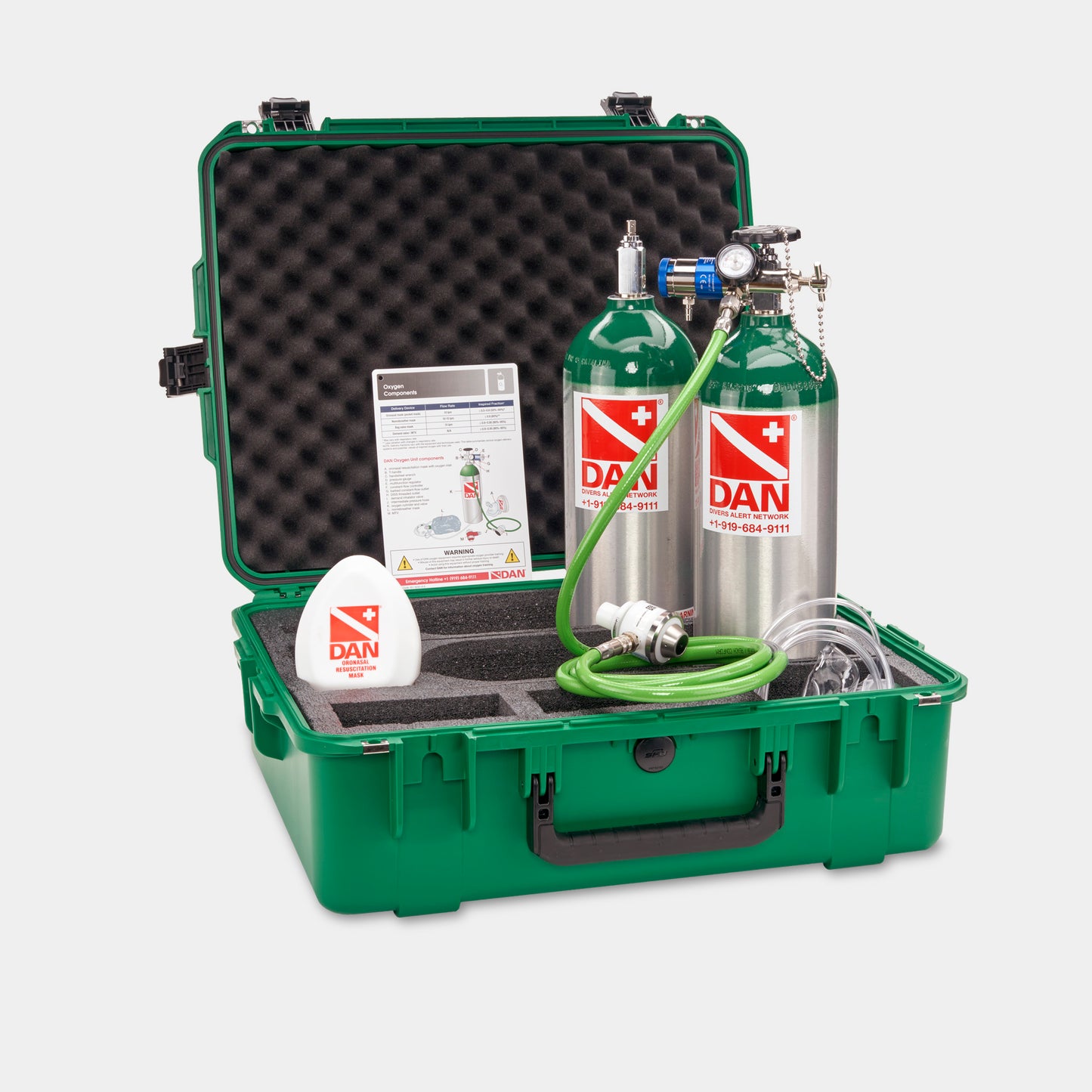

KIT INCLUDES:

• 1- Compact, waterproof case
• 1- Brass multi-function regulator
• 1 – MTV (D-MTV)
• 1- Green 6ft hose w/quick connect
• 2- Jumbo D cylinders - Green
• 1- Oronasal resuscitation mask
• 2- Non-rebreather masks

• 1- Handwheel wrench
• 1- O2 Assembly slate
