Jumbo D Cylinder - Green Shoulder

This cylinder is used with DAN’s Rescue Pak Extended Care, Dual Extended Care and Soft-Sided Extended Care oxygen units.

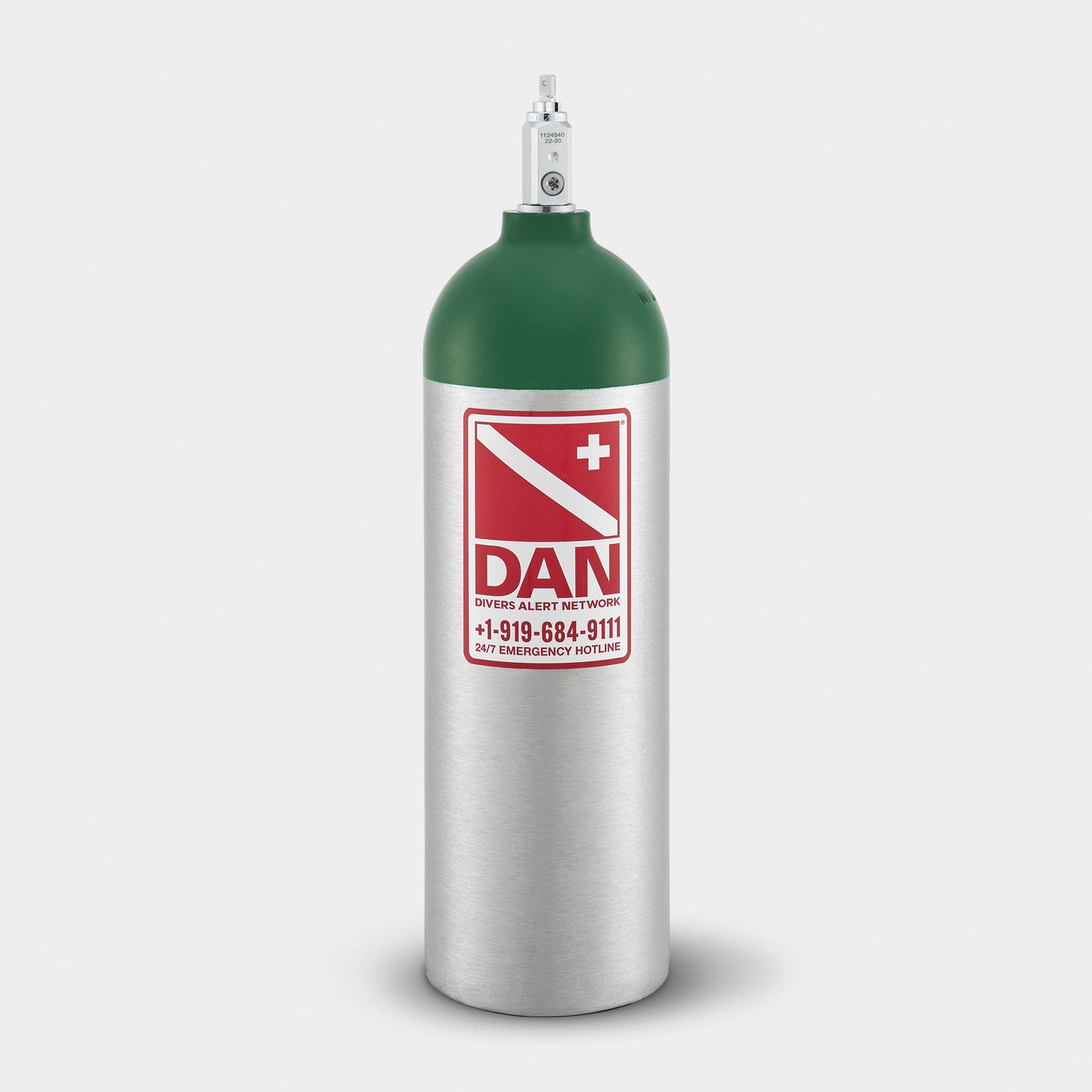

Jumbo D – M22 cylinder (Green)

Specifications

• ± 58 minutes oxygen delivery time based on 10 liters per minute constant flow
• ± 39 minutes oxygen delivery time based on 15 liters per minute constant flow
• Fitted with a standard PIN Index valve to CGA-870 (ISO 407)
• Aluminum cylinder with green or white shoulder
• Specification: DOT 3AL & TC 3ALM
• Aluminum alloy 6061-T6
• Clean for oxygen as supplied by manufacturer
• Overall length including valve: 19.25” (489 mm)
• Nominal diameter: 5.25” (133.3 mm)
• Water capacity: 3.9 liters
• Rated working pressure: 2216 psi (153 bar)
• Maximum gas volume when full: 22 cf (623 liters)
• Weight empty: 8.2 lbs (3.7 kg)
